Drill

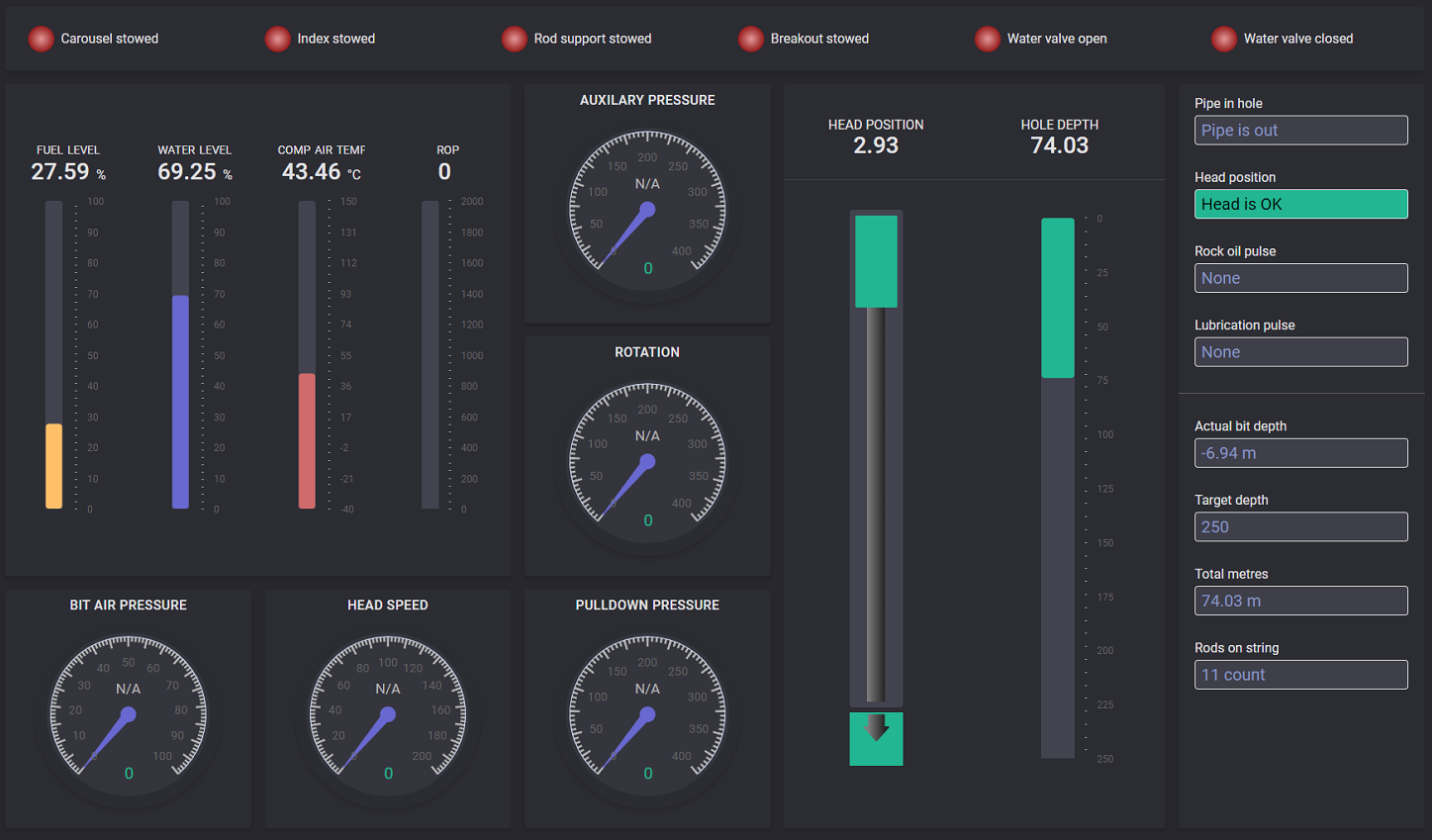

On the Drill tab is displayed the set of equipment parameters. All the scales are informative and cannot be modified by the user. On the top panel placed light indicators: carousel stowed, index stowed, rod support stowed, breakout stowed, water valve open and water valve closed.

On the scale bars can be tracked fuel level, water level, component air temperature, and rate of penetration (ROP). Also on the Drill tab placed the set of the dial indicators displaying Auxilarypressure, Rotation, BIT air pressure, Head speed, and Pulldown pressure values. The head position is displayed on the scale with an arrow. The arrow is highlighted with green if its position in the hole is correct. On the hole depth displayed total drilled meters highlighted with green. The scale can be changed with changing target depth on the settings tab.

The right panel displayed information on the status of the pipe in the hole, the status of head position, the value of rock oil pulse, and the value of lubrication pulse. Actual bit depth, target depth, total meters, and rods on strings values are displayed on the right panel.
