You must have Drillers Rights in order to release and add a new well section.

Upon completion of the

• Enter the Settings Menu on the left-hand panel

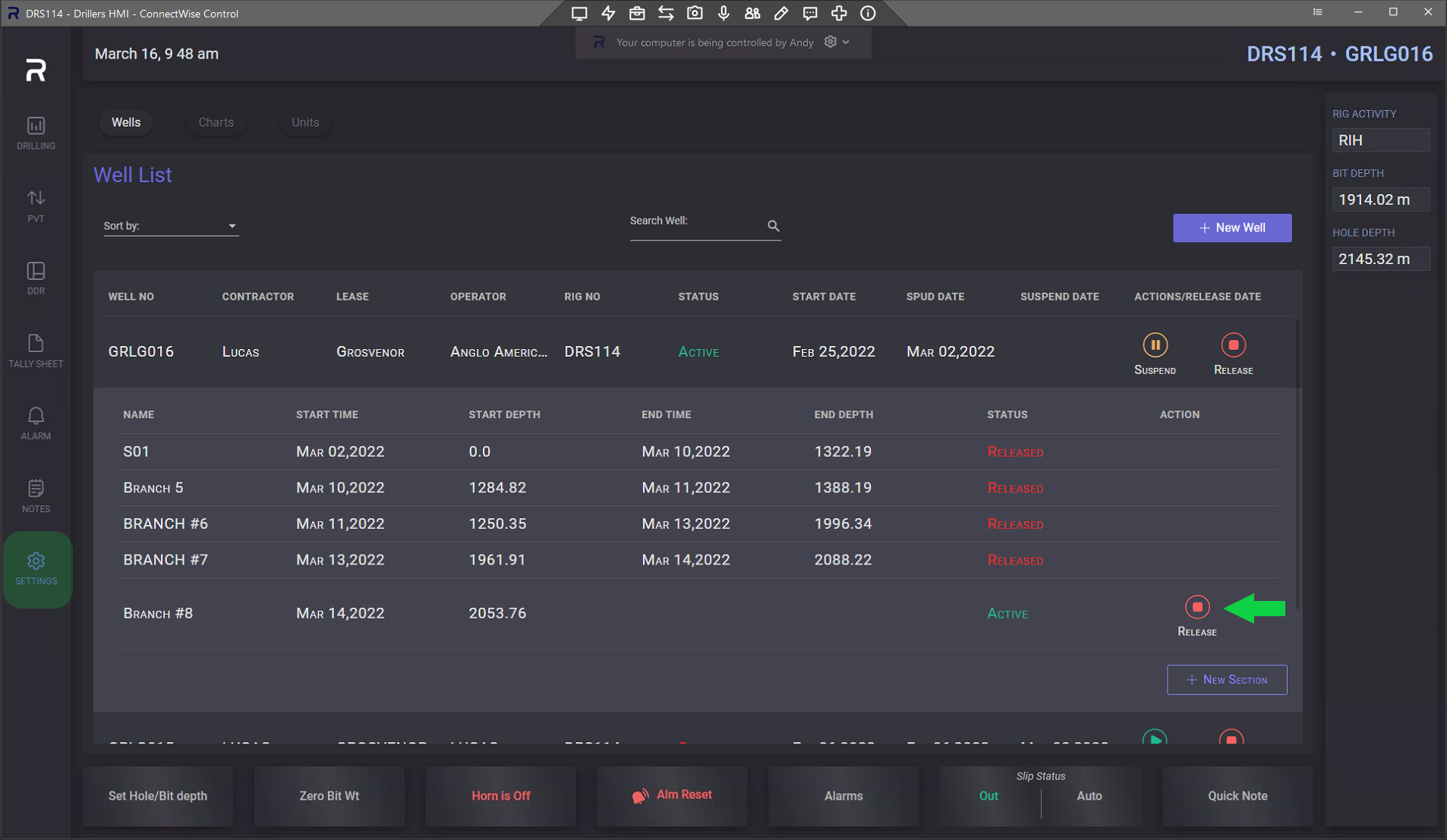

• Click the red RELEASE button on the active section.

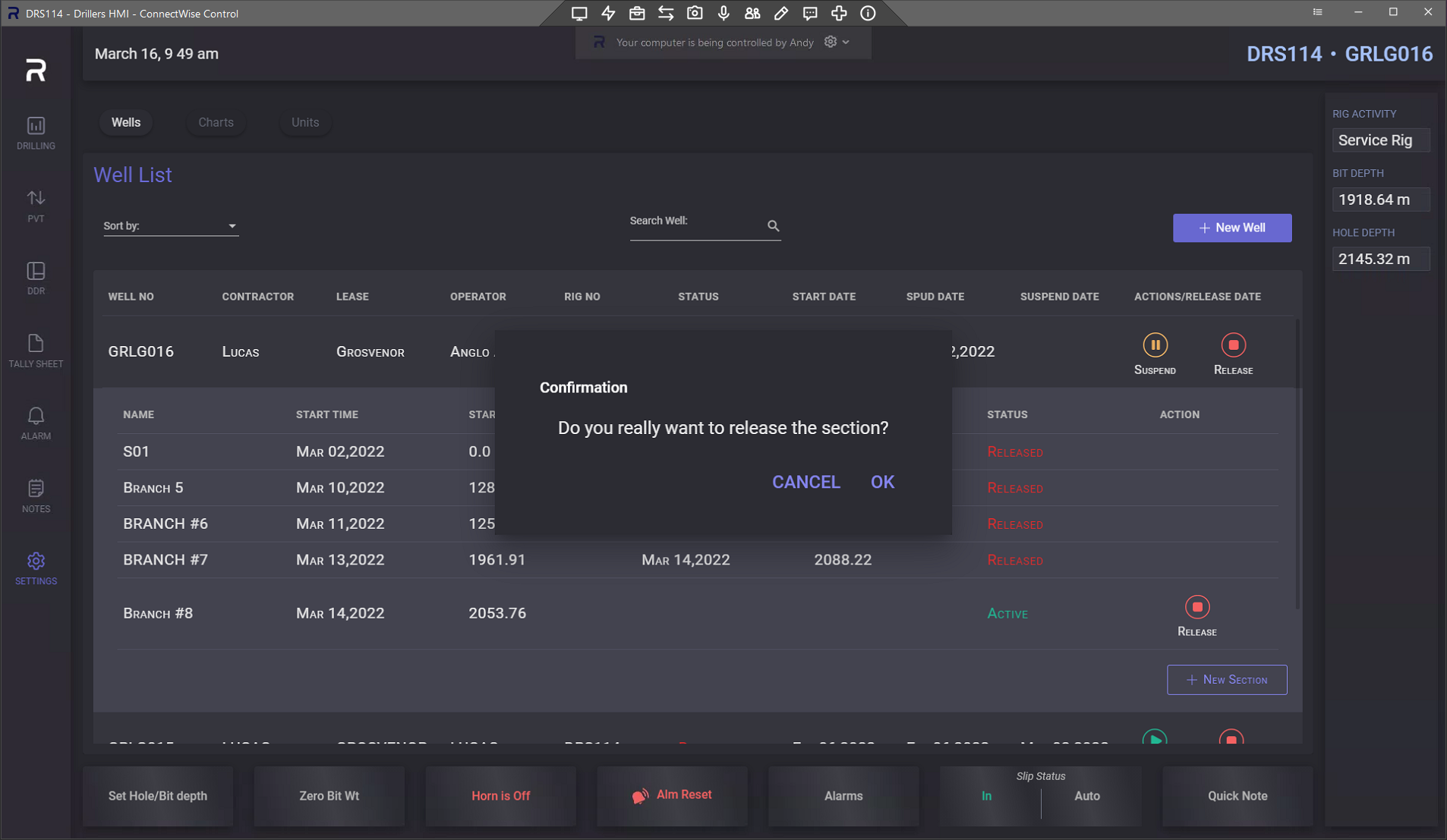

• Select OK to release the Well Section

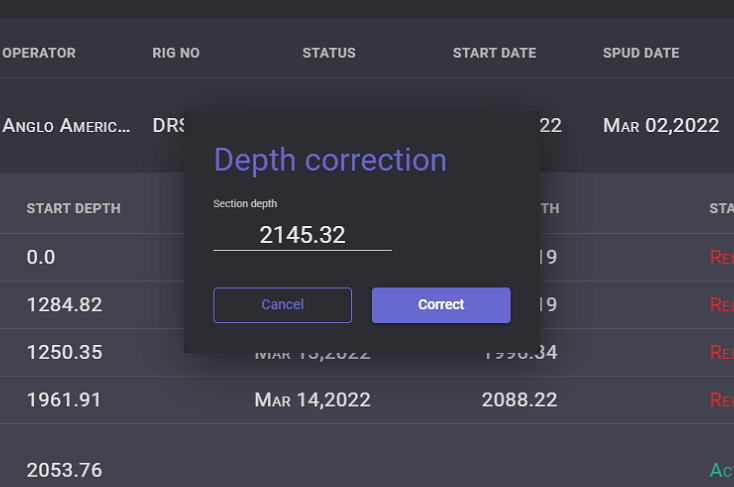

• In the Depth Correction Pop-up window enter any depth correction to the end of the current well section and click CORRECT to apply the depth shown in the menu as the well section finish depth.

• The current section is now released and will no longer have any data written against it.

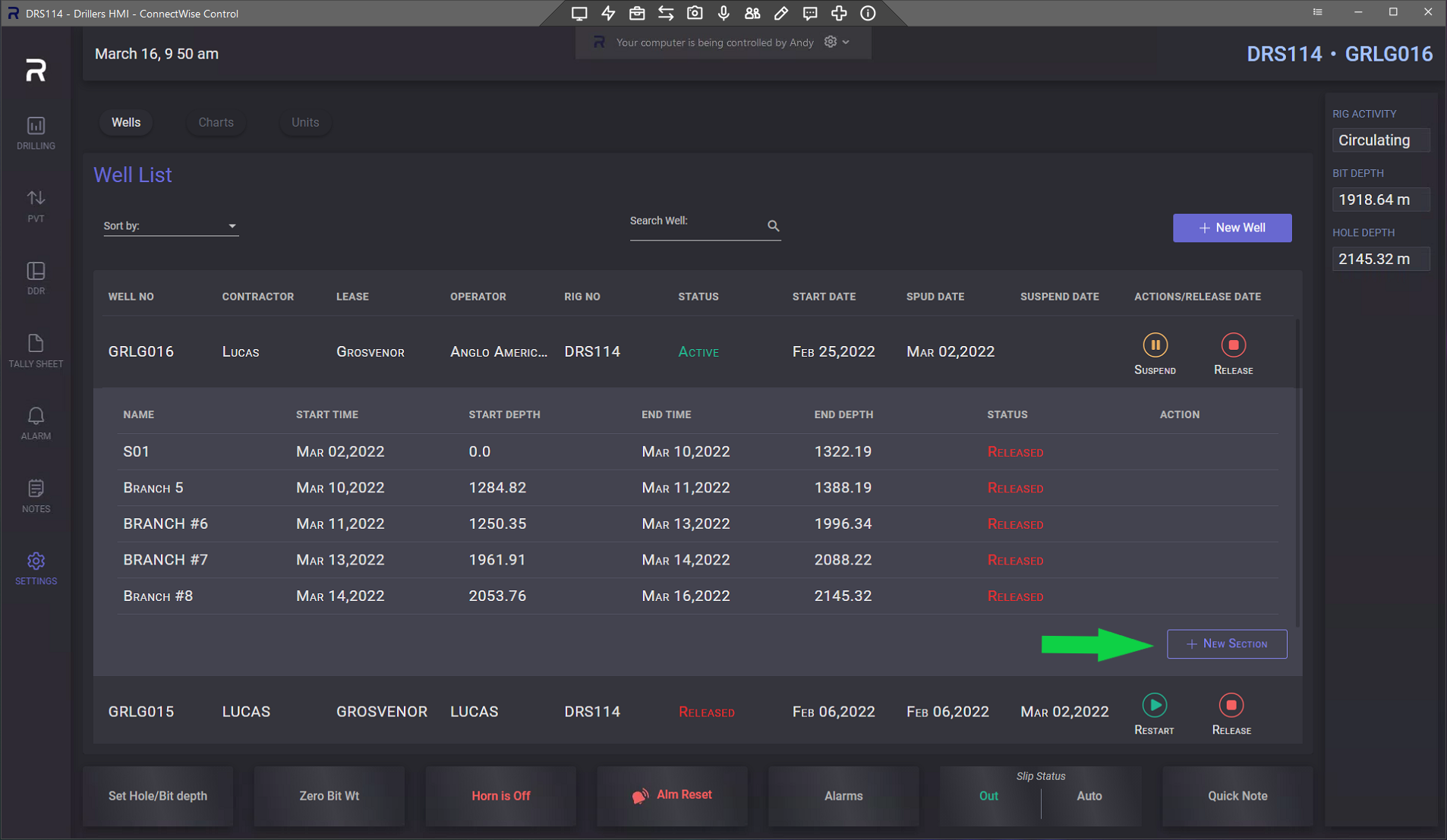

• Start a new section by clicking the + NEW SECTION Icon on the bottom right hand side of the window.

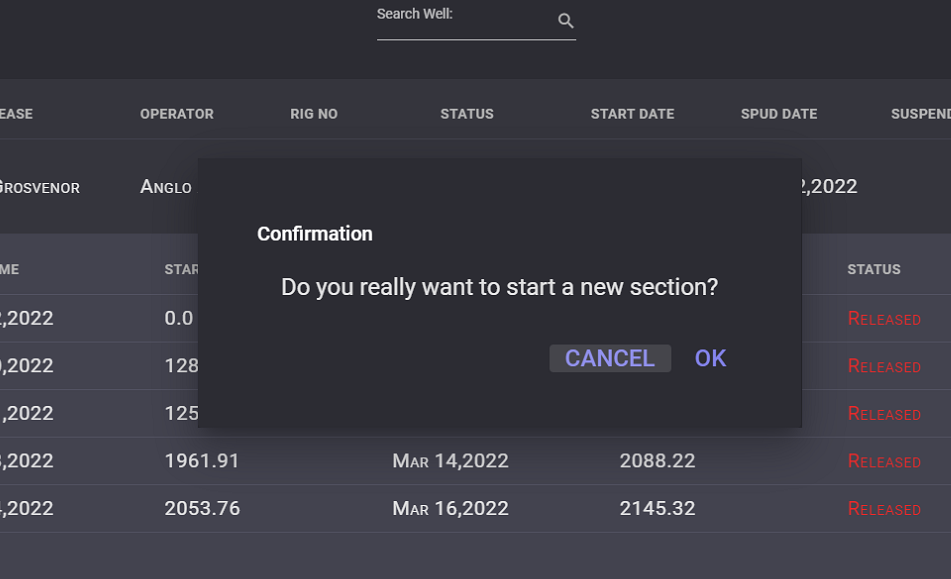

• Click OK to start a new Section

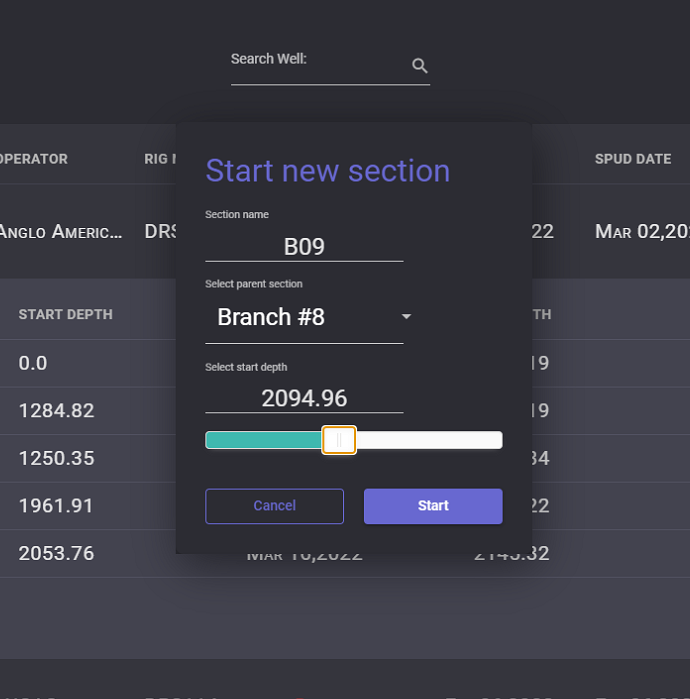

• In the Start New Section Menu enter the following details

  • Section Name: Enter the Section name for the new branch.

  • Select Parent Section: Enter the Parent section for the new branch.

  • Select Start Depth: Enter the start depth of the new branch.

• Select START to create the new branch.

WARNING! Ensure the correct Parent Section is chosen from the drop-down list. The parent section is the branch from where the new branch will be cut from. If you select the wrong Parent Section please Contact Cyberloop (support@cyberloop.ai) to assist with correcting the error.

The New Section will new be shown as Active in the Section list. All new data will be written into the New Section.
