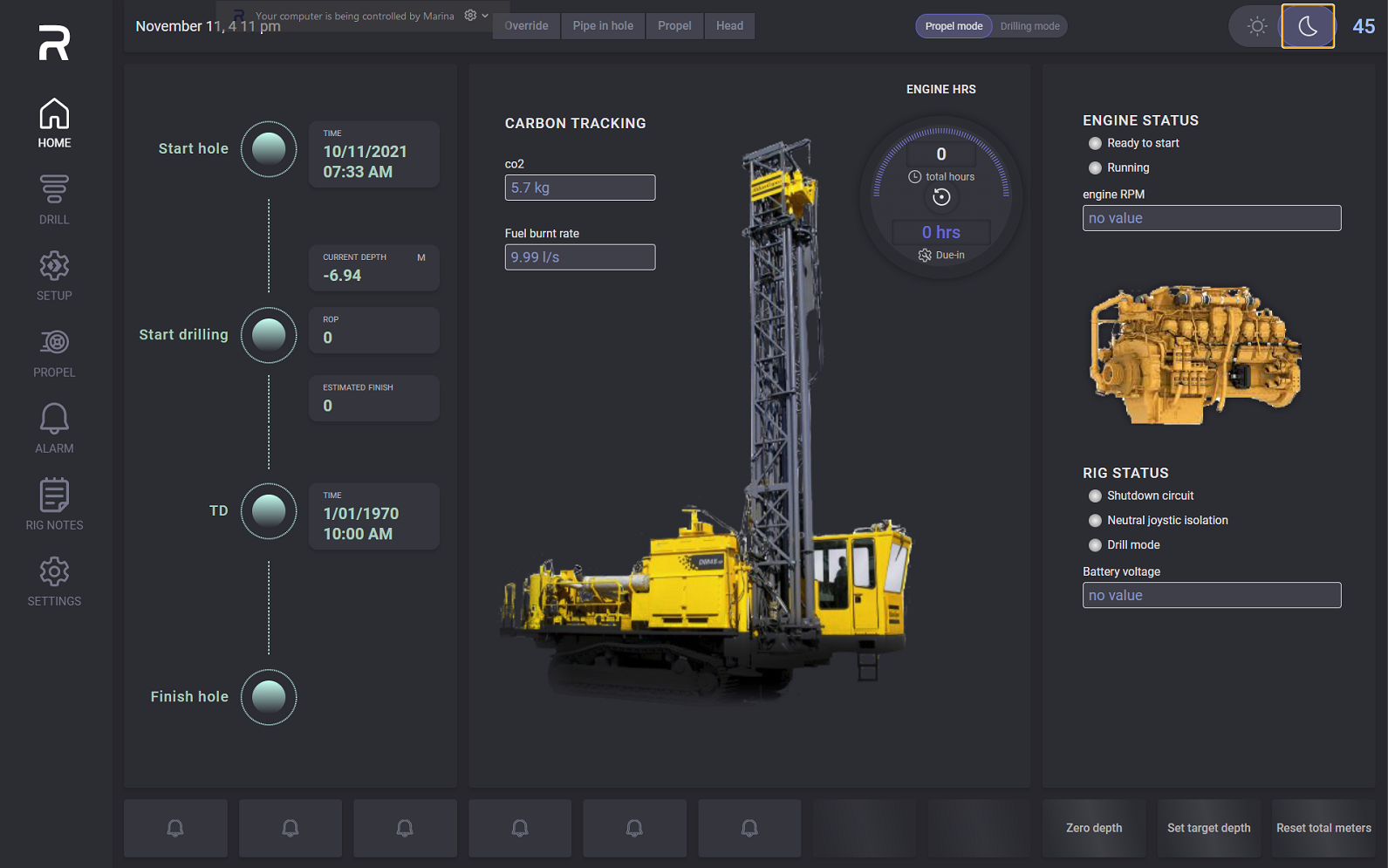

Home page

On the home page, the main points of the hole progress are displayed in the left block:

• Start hole - the date and time when the hole was started;

• Start drilling - current depth, rate of penetration (ROP) value, and estimated finish depth value;

• TD - planned end-date and time when target depth is reached;

• Finish hole.

The central block contains the tracked main carbon parameters:

• Volume of co2 (kg);

• Fuel burnt rate (litres/sec).

The central block also displays the Engine Operation Hours. To reset the engine hours back to zero, click on the reset button in the middle of the scale.

The right block contains:

• Information on engine status (ready to start or running);

• Engine RPM;

• Rig status (shutdown circuit, neutral joystick isolation or drill mode);

• Battery voltage.
