How-to save and load workspace template

This user guide contains information how to save a workspace template and how to import it to apply to the charts.

1. Open the Drilling page of the selected Well

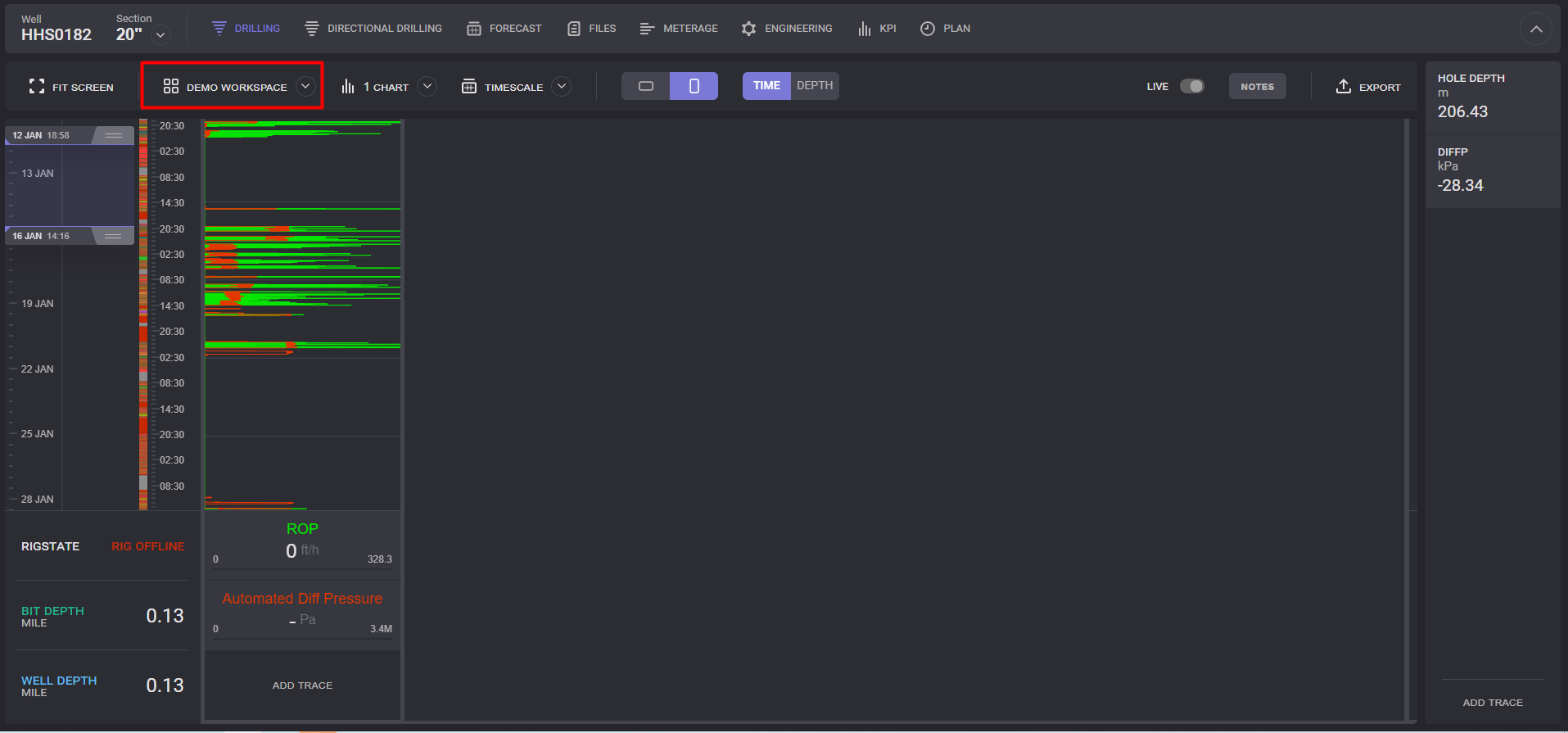

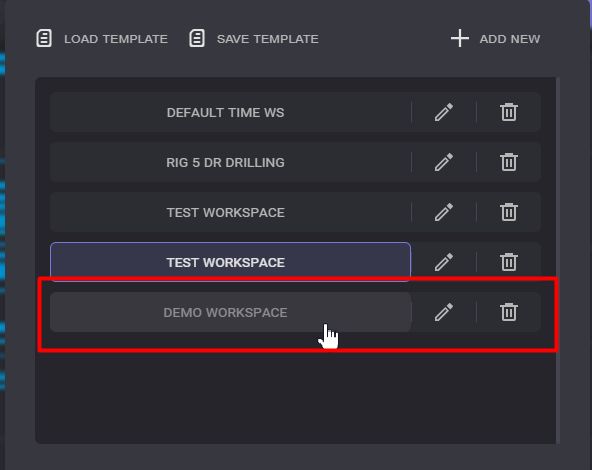

2. Click on the Workspace name.

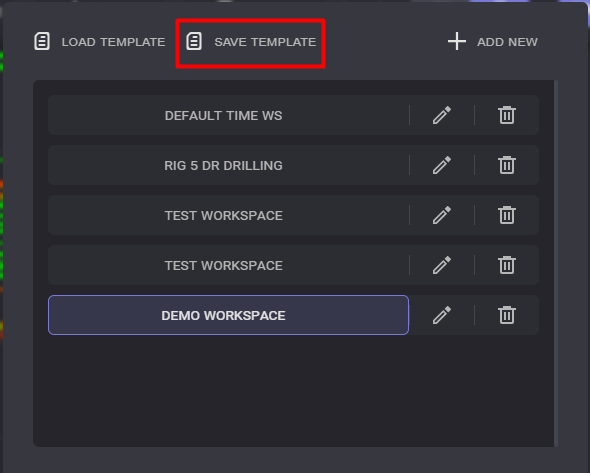

3. In the expanded dialogue click on the Save template

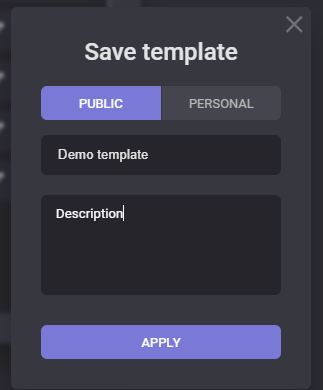

4. In the Save template dialogue select the type of the template (Public or Personal), enter template name and description.



5. Click on the Apply button.

The workspace template will be saved.

To Import save workspace template proceed following steps:

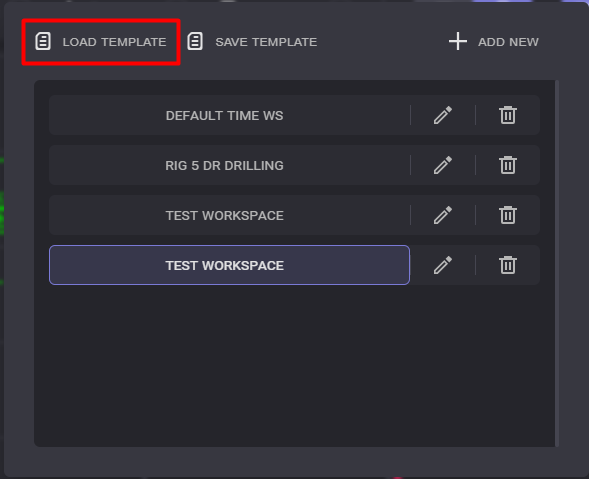

1. Click on the Load template in the Workspace dialogue.

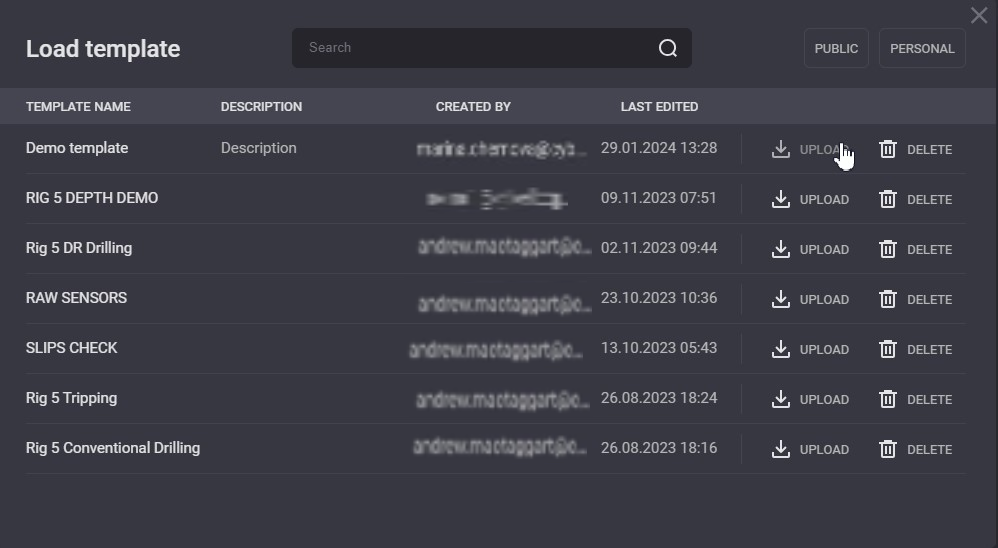

2. In the Load Template modal window click on Upload next to template to be added.



3. Selected template will be added to the workspace templates list.
