Propel

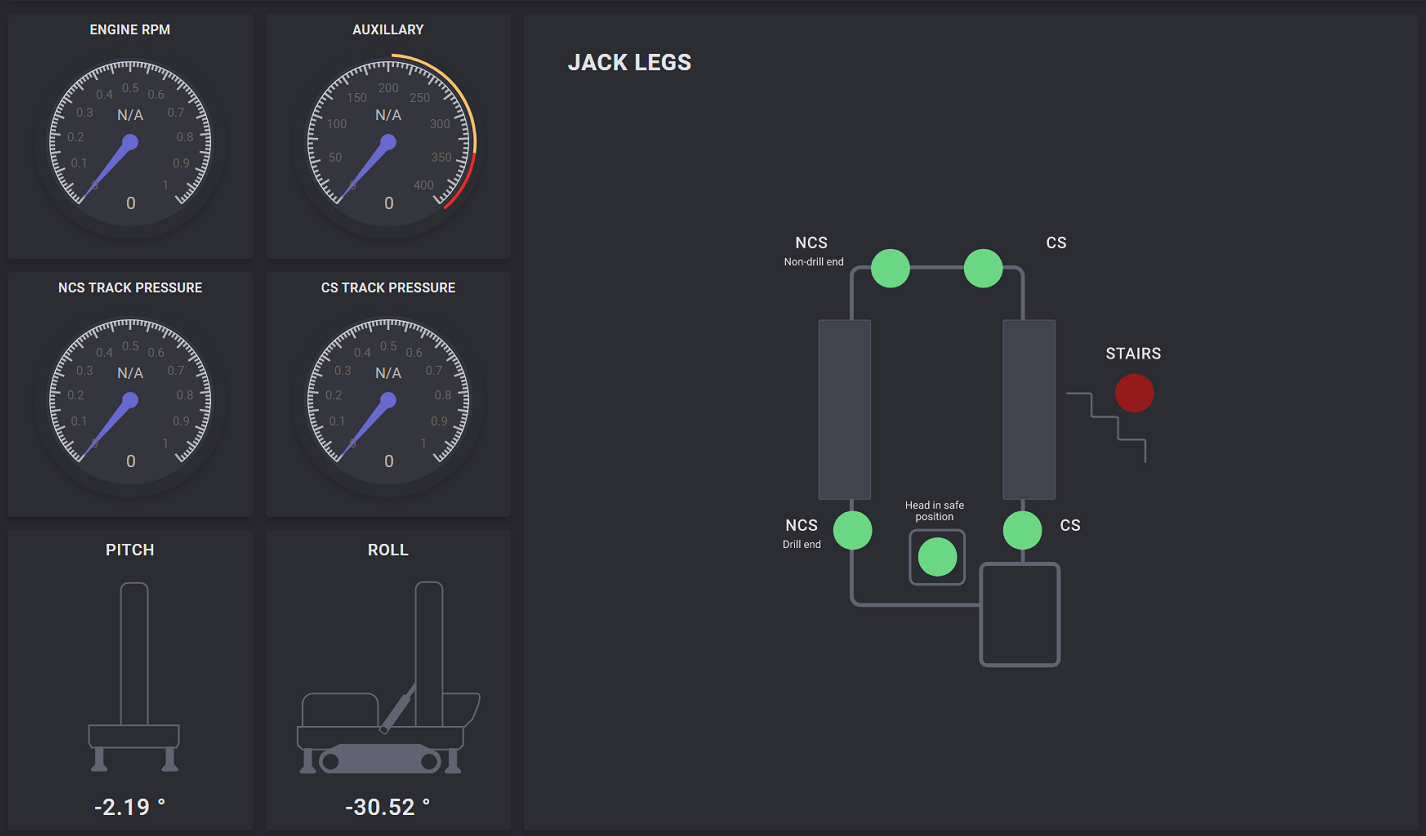

On the Propel page displayed the propel’s configuration parameters are presented. In the left panel are presented dial indications for Engine RPM, Auxillary, NCS Track Pressure, CS Track pressure.

In the Roll and Pitch blocks roll angle and pitch (deviation of the main axis) angle values are presented with block schemes.

In the Jack legs block is presented the block-scheme of the jackleg equipment. Keypoints on the block scheme are marked with indicators:

• Stairs;

• NCS (Non-drill end);

• CS;

• NCS (Drill end);

• CS;

• Status wether Head in safe position.

Indicators display the status of the module.
