Driller Screen

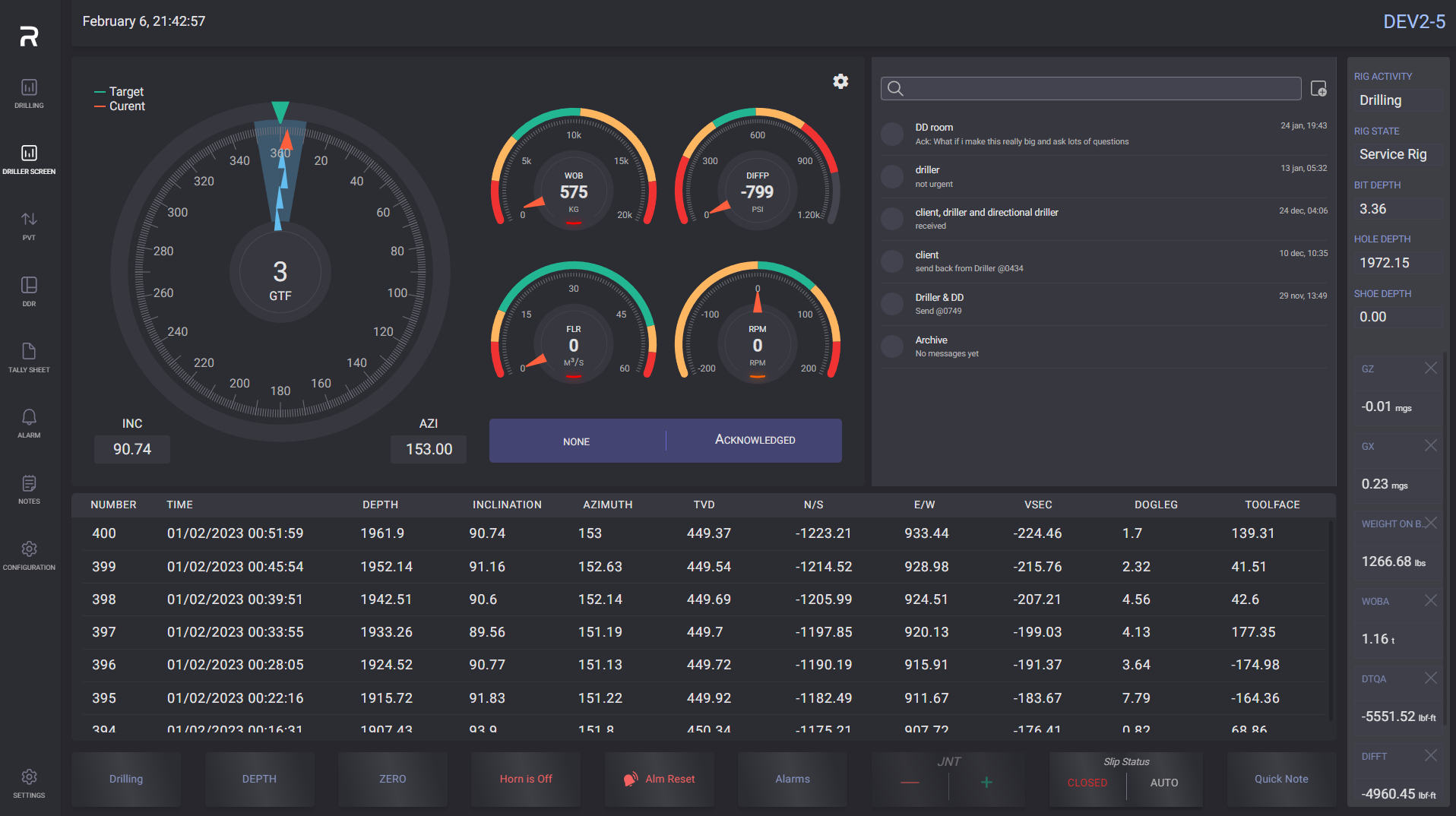

Driller Screen can be used to track the Gravity Toolface (GTF), Weight on bit (WOB), Differential pressure (DIFFP), Flow rate (FLR) and Rate of rotation (RPM).

On the GTF gauge red pointer display current angle on the scale and green pointer display target angle on the scale. Current angle value presented in the middle of the gauge. Target pointer can be hidden by clicking on its legend. Inclination and Azimuth values are displayed below the gauge.

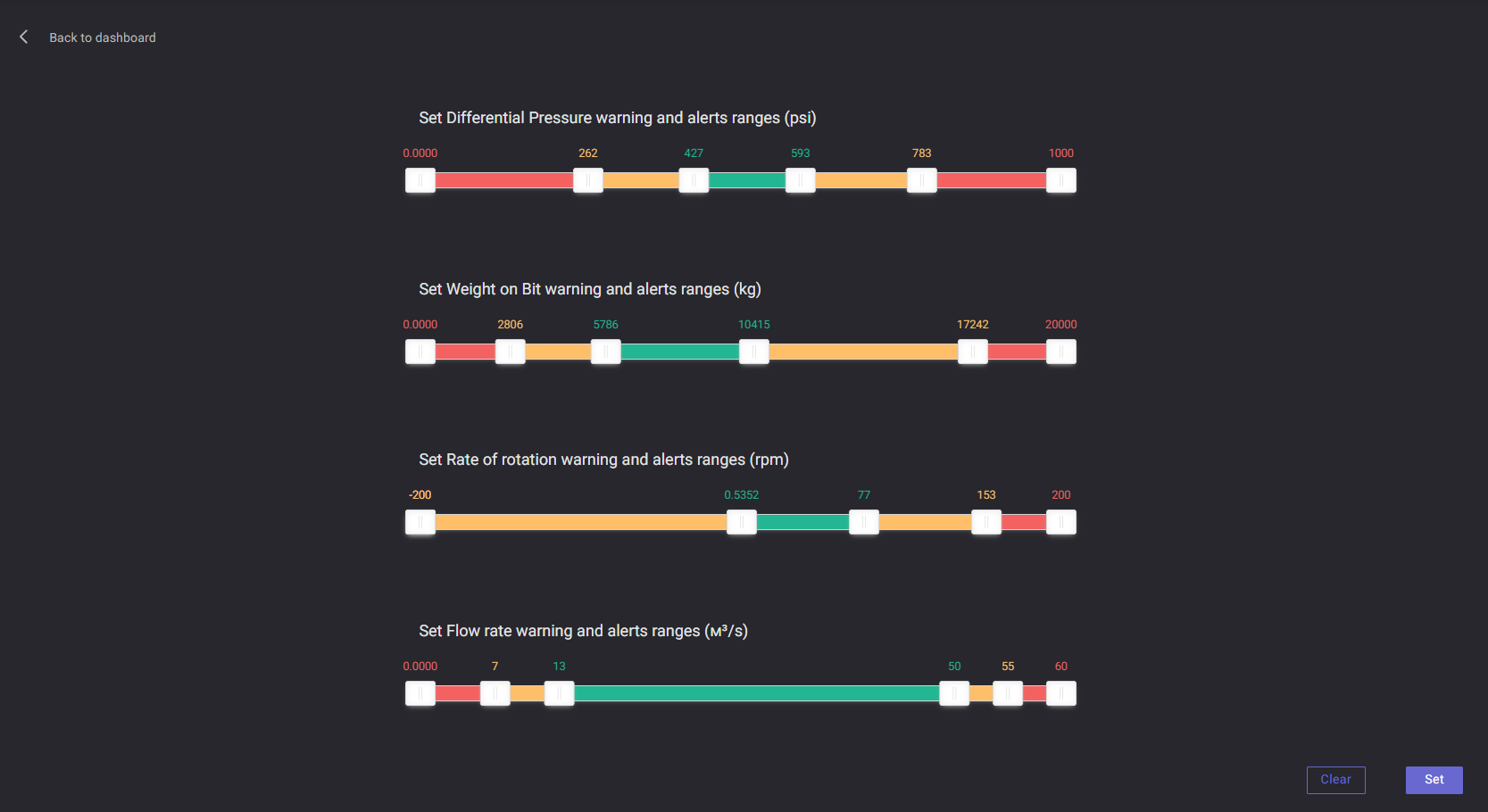

Click on the Gear icon opens dialog to set up ranges and alarms for WOB, DIFFP, FLR, RPM.

The range can be changed by dragging the corresponding toggle on the scale. Boundary values for the ranges displayed over the toggle. To save applied changes click on the Set button. Changes will be applied on the gauges at the Dashboard.

Click on the Clear button resets all ranges to zero.

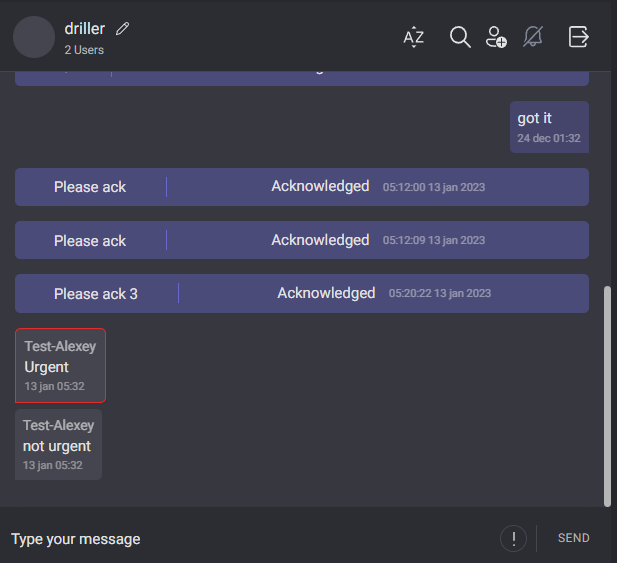

The request for acknowledgment from the Directional driller can be confirmed by clicking on Acknowledged button. It can also be done in the chat.

Chat
