Portal Directional Drilling

Dashboard

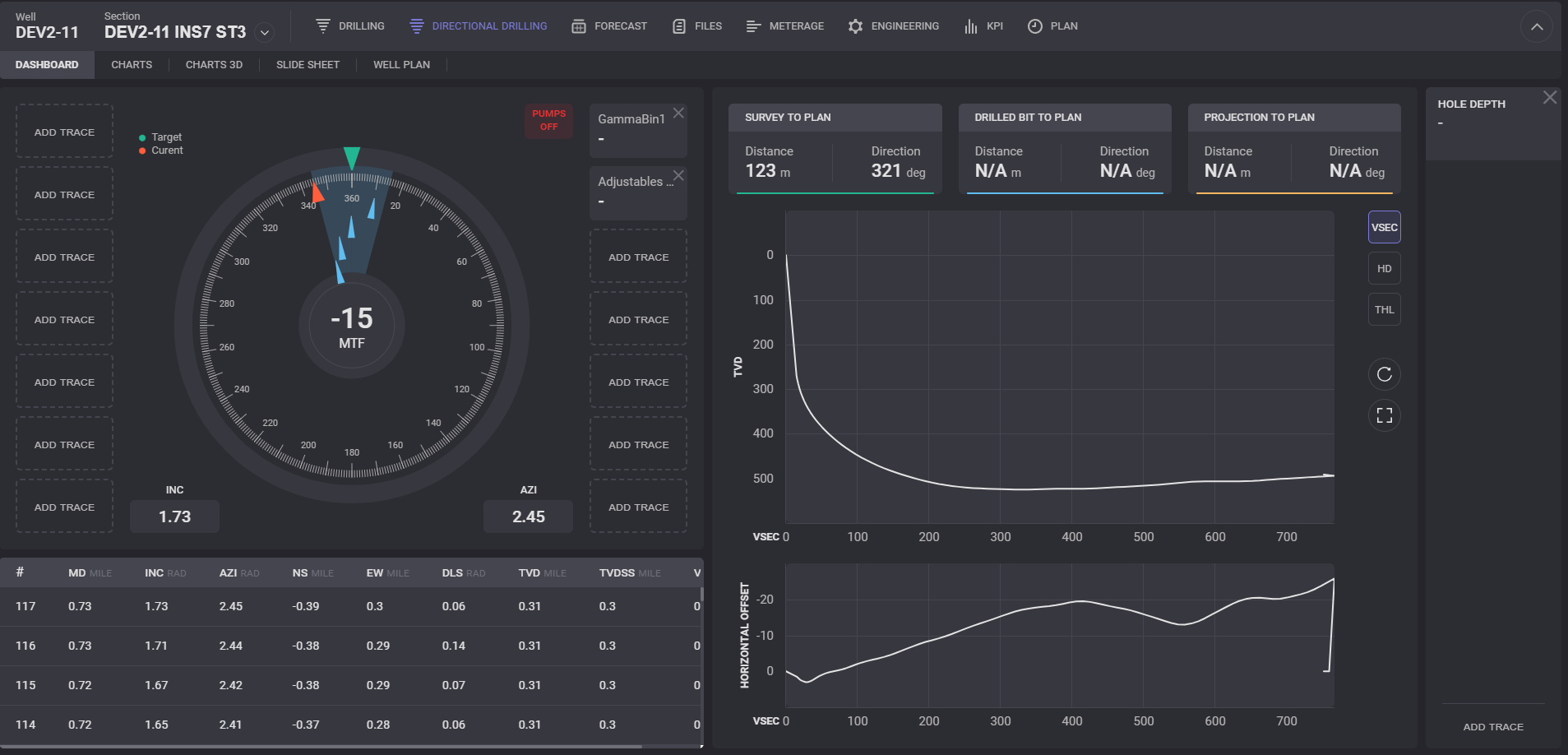

Directional drilling can be used for tracking drilling parameters. On the Dashboard displayed dial scale to track Magnetic Tool Face (MTF) and Gravity Tool Face (GTF) values. Red pointer display current angle on the scale and green pointer display target angle on the scale. Current angle value presented in the middle of the gauge. Target pointer can be hidden by clicking on its legend. Inclination and Azimuth values are displayed below the gauge.

Parameters to track can be added by clicking on the Add Trace card. In the opened Add dialogue, trace and trace units should be selected from the drop-down lists. Click on the Apply button will add the parameter to the panel. The card can be cleared by clicking on “x“ button in the top-right corner.

Charts

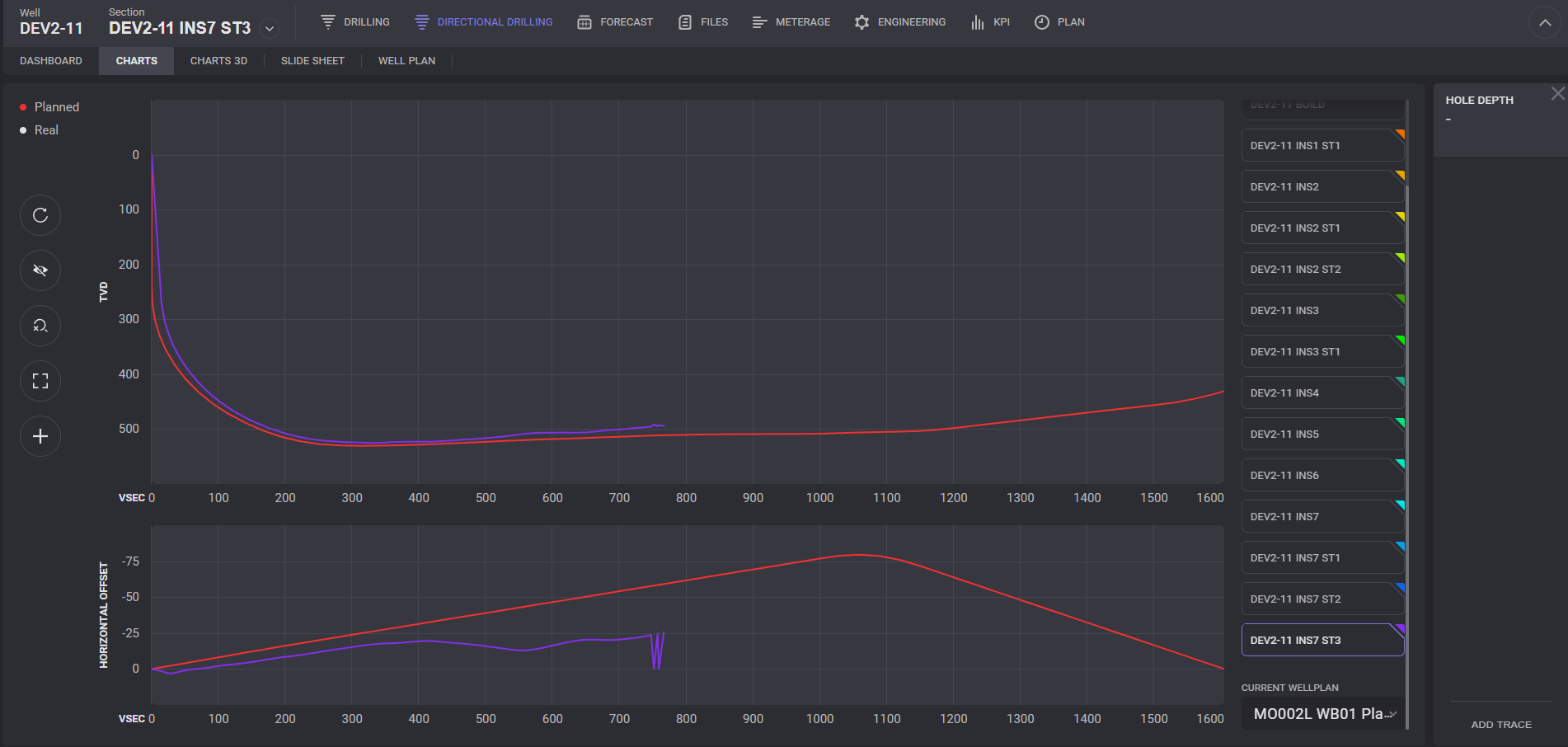

This section shows a 2D chart comparison between Well Plan and current well design based on Directional Surveys.On the right side panel the Wells sections can be selected/deselected to be plotted on the chart. Each section will have its own colour.

Charts 3D

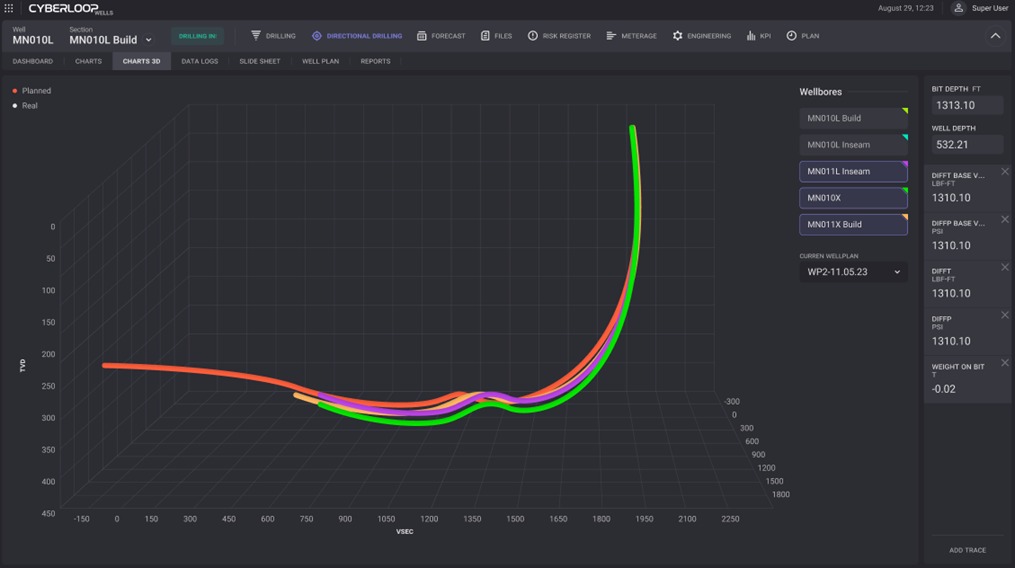

Cyberloop provides this amazing chart where user can compare current well design based on directional parameters with the Well Plan which should be uploaded.

Slide Sheet

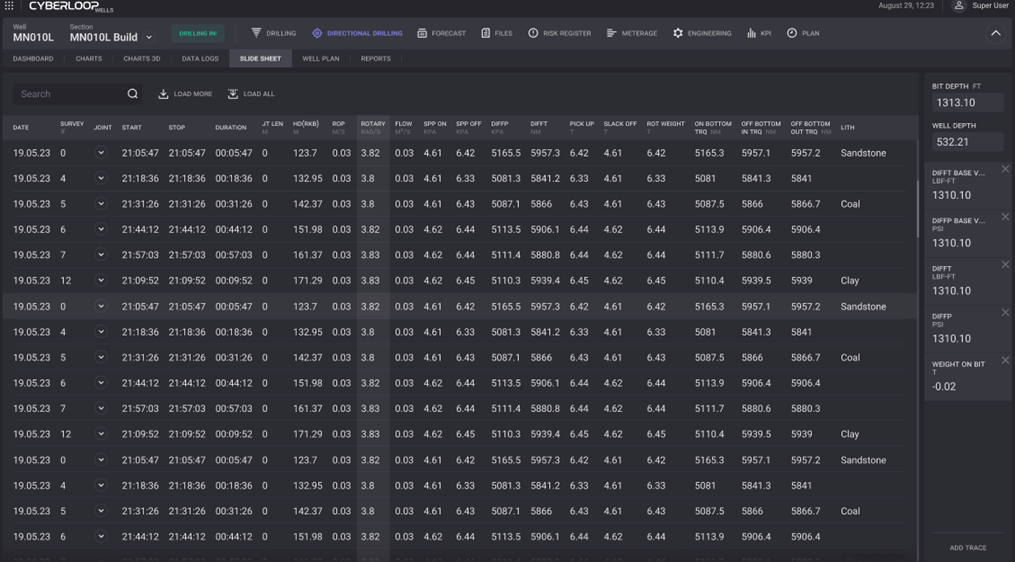

This track tool shows a list of the slides that have been performed during the well. The slide sheet provides an interesting package of columns to give the user as much information as possible.

Well Plan

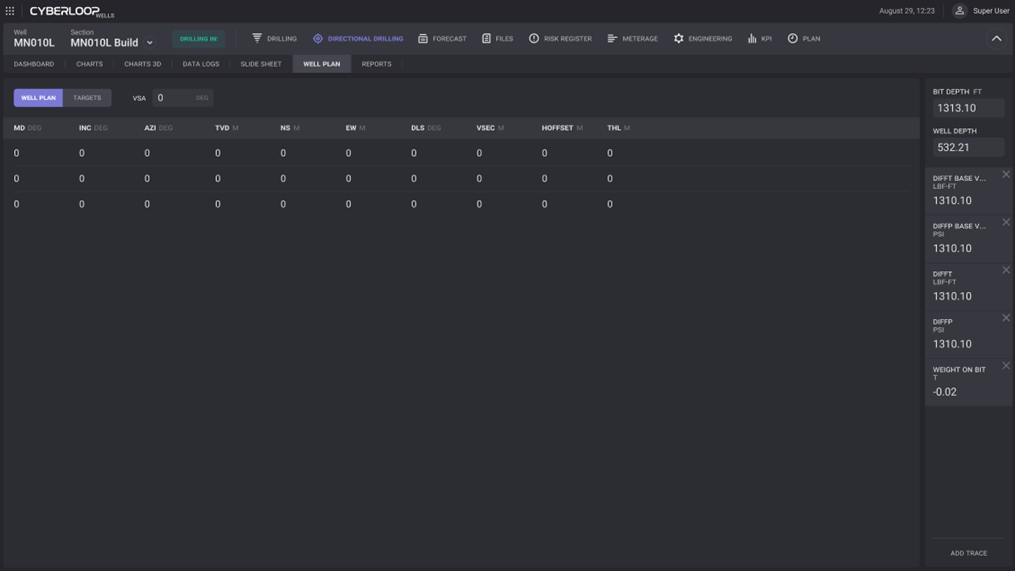

Well Plan section is a page where the Directional Drilling Plan must be uploaded, it will serve as support for the charts and many KPI widgets.
